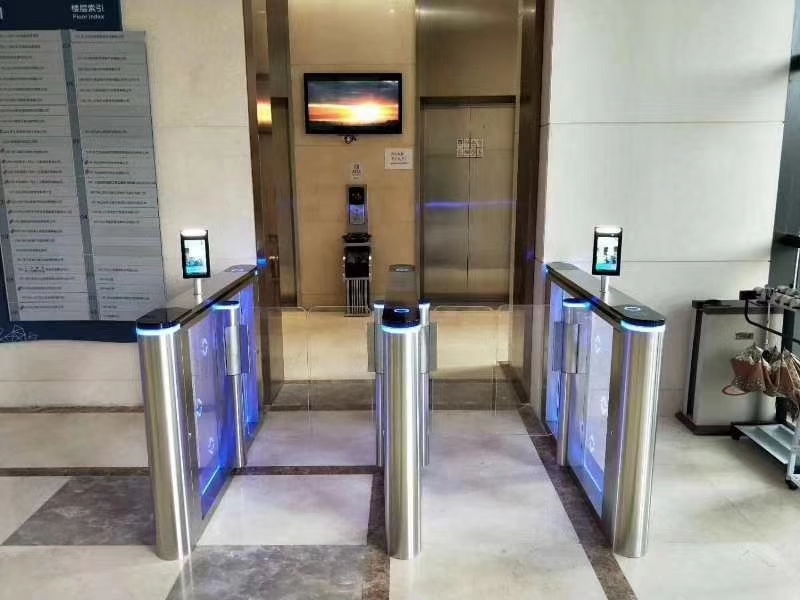

High Quality Access Control System Speed Gate Turnstile
Access Control System Speed Gate Turnstile have always been used extensively in office blocks, banks, prison
universities and public buildings with high safety entrance control. This can be attributed to the fact that they are excellent security solutions designed for handling high volumes of foot traffic on a daily basis.
Parameters of Access Control System Speed Gate Turnstile
| Name: | Fastlane Speed Gate Turnstile |
| Dimensions: | 1600x120x1000mm |
| Materials: | 304/316 stainles steel (more than 1.5mm) |
| Opening time: | 0.2 seconds |
| Infrared: | 5 logarithms |
| Lane width: | ≤900mm default 600mm |
| Throughput: | 35 person /minute |
| Voltage: | AC220±10%V 50HZ |
| Motor: | DC motor 24V |
| Power: | 35W |
| Temperature: | -25~+70ºC |
| Applicable environment: | Indoor/outdoor (rainproof shed without ponding) outdoor) |
| Relative humidity: | ≤90%,No condensation |
| Communication interface: | RS485 Electrical standards ; ≤1200 meter / TCP-IP |
Functions of Access Control System Speed Gate Turnstile
1)Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
2)The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
3)It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
4)In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5)Optical Turnstiles are suited for elegant and luxury entrance solutions.
6)The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
7)Alarm function, in case of illegal intrusion and reverse intrusion.
8)Infrared sensor to prevent pedestrians from getting clamped.
9)Anti-breakthrough function: The gate is locked automatically until opening signal received.
10)Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
11)LED indicator.
12)When power is off, optical turnstile will open automatically, which complies with fire safety requirements.
Available areas:
Public transportation (Train Stations, Metro Stations, etc…)
Government Offices
Public Offices
Business Building Centers
Schools
Hospitals
Stadiums
Sports Centers
Industrial Buildings
FAQ:
1.What's the MOQ?
The MOQ of the tripod turnstile is 1pc/pair
2.Whether the size and shape of turnstile can be changed?
Yes, we can redesign the size and shape of the turnstile to meet your requirement.
3.Is the parts of turnstile available?
If you order our turnstile, the parts can be offered.
4.About the OEM and ODM
Our turnstile can be label your logo to meet your requirement.
5.About the warranty and after-sales services
We provide one year warranty and all life after-sale service, if require, we can dispatch our engineer to the spot to
help you
6.About the package
For turnstile, carton package first, then wooden case package to make sure if won't be damaged in the process of transportation.
7.About the installation
We provide the manual to help you to install our turnstile, as for the software, we provide team viewer to install the
software. Any help will be provided to meet your needs.
8.About the delivery time
5-7 days after payment received
9.About the term of delivery
Support EXW, FOB,etc.
